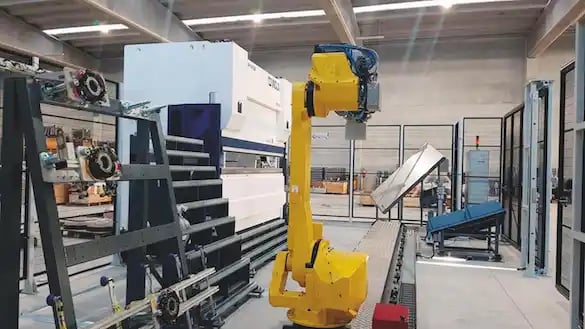

Everything is possible with MATRIX bending cells

The MATRIX bending cells are machines which are today in great demand on the market, designed to take up, fold and deposit profiles in metal sheeting;

all, completely automatically.

These machines today make possible the creation of items which was unthinkable until a few years ago. These are heavy units, up to 250 kg, with considerable thicknesses handled between the cut and folding.

Operations which, before robotic folding, were carried out using welding or other complex means.

Configuration

The standard configuration of the machine consists of three main groups:

• Handling with press brake and Cartesian robot.

• Management through programming with simple and intuitive software.

• Completion consisting of loader, loading surface, thickness gauge, tipper and gripper

The robot arm always remains horizontal, allowing the piece to be positioned in the matrix, supporting it either from above or below without ever sustaining interference with the piece itself.

The linear axes allow for positioning the MATRIX arm always in the same manner, both in front of all the folding stations as well as on all the pallets, simplifying its management

The horizontal runway beam is elevated from a height of 2300 mm to a height of 2950 mm, allowing for the passage of medium load lifting trolleys. The beam thus appears “transparent” with regard to the load, and in no way limits manual use.
