HYDRAULIC SHEET METAL PRESS BRAKE

VICLA .SMART MODEL

fresatura
Vibrations and stress free

The parallel frames and the double-guided ram minimize the vibrations and the stress and ensure great staibility.

bending precision

Hydraulic crowning

The hydraulic crowning system is already included in all our hydraulic sheet metal benders.

industry 4.0
Industry 4.0 compliant

All our hydraulic press brakes are compliant with Industry 4.0. Evaluation, consulting and softwares are included in all our press brake models.

tailored-made solution
Tailored-made sheet metal press brakes

We can customize your hydraulic press brake according to your specific needs.

Hydraulic sheet metal brake
Functional features
hydraulic press brake

Easy interface
Excellent value for money
Latest generation touchscreen control
Automatic crowning managed by CNC
Movement of the axis at extremely fast rate
High productivity thanks to high speed levels
Tool clamping customizations according to your needs
hydraulic brakes

SAME DNA AS THE .SUPERIOR, SAME QUALITY AND EFFICIENCY

.SMART SHEET METAL BRAKE WITH BASIC TECHNOLOGY

For versatile, functional and flexible production needs

QUALITY OF MATERIALS

The structure of the hydraulic sheet metal brake is built with high quality steel certified S355JR and is subjected to accurate mechanical processing:

  • high precision electric welding;

  • use of latest generation mobile column boring machines for centesimal precision finishing;

  • the solidity of the structure is made exclusively following the direction of lamination, making it exstremely resistant.

SAME DNA OF THE HYBRID SUPERIOR, SAME QUALITY AND EFFICIENCY

Inspired by the efficiency and solidity of the VICLA flagship .SUPERIOR sheet metal brake, the .SMART hydraulic press brake is equipped with non-active hydraulic crowning and 4 axes (with the possibility of upgrading up to 6) and 250 mm stroke.
.Smart is a traditional sheet metal brake that uses the basic technology of its cousin .SUPERIOR and the same quality contents and technical prerogatives.

hydraulic sheet metal brake

SMART PRESS BRAKE.

SMART FACTS.


hydraulic press bending machines

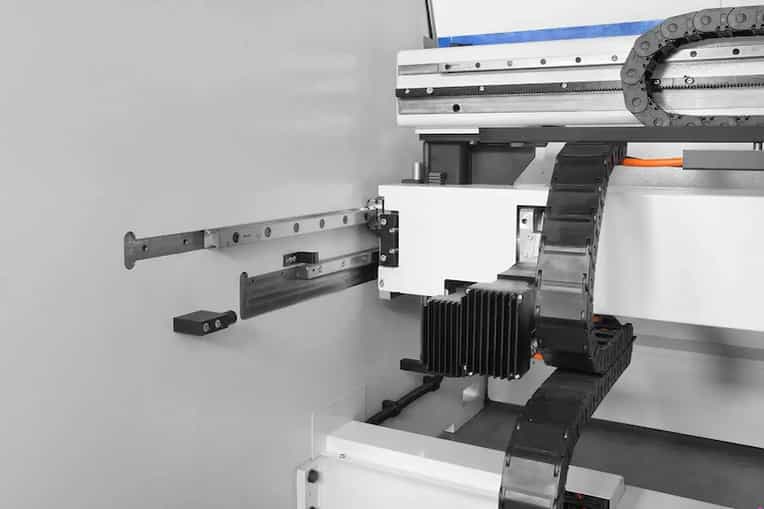

POSITIONING PRECISION AND HIGH SPEED

Compared to a standard hydraulic press brake, VICLA’s .SMART hydraulic bending machine is caracterized by the bending precision and the movement of the axis at a fast rate. These results are possible thanks to the parallelism of the side frames, (whose tolerances are within the hundreds) and the rails mounted on the side frames. Combined together, these two technical features allow to minimize the vibrations and the stress, so that the backgauge can move faster, but maintaining the positioning precision.

hydraulic press bending machine

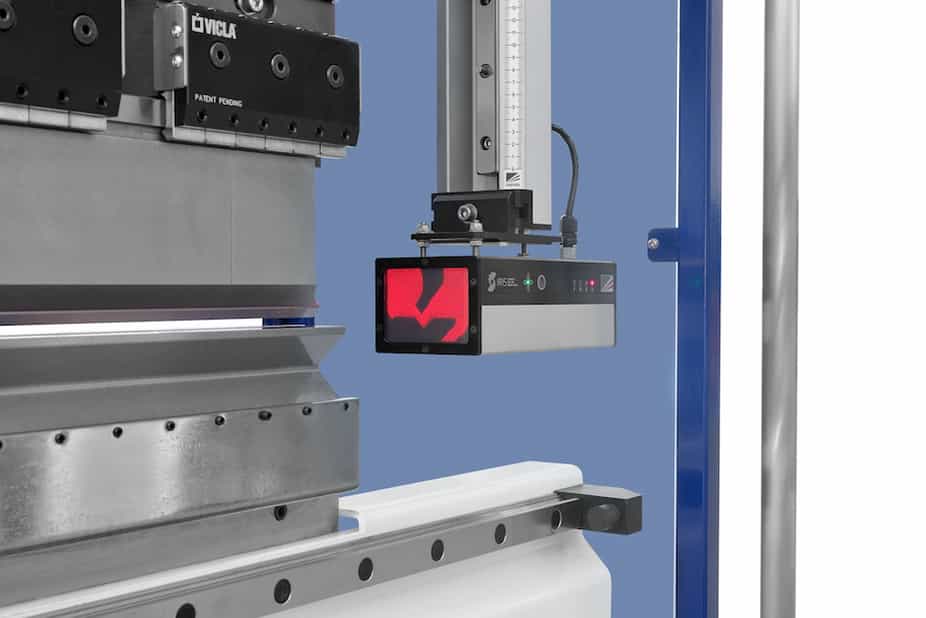

SAFETY WORK

VICLA’s hydraulic sheet metal press brake complies with the strictest EU regulations with reference to safety. The devices installed guarantee thorough safety of the operator without reducing the pace of work.

press brake for industry 4.0

DISCOVER THE BENEFITS OF INDUSTRY 4.0

A 4.0 sheet metal bending machine is capable of storing and using huge amounts of data to constantly improve production. With the 4.0 softwares installed on our sheet metal bending machines you can:

  • create the orders to be processed;
  • view the list of orders to be carried out;
  • register a database of all machine events (alarms, statistics, production lists);
  • view in an orderly way the data saved in the database by selecting different graphs and time intervals.

MADE FOR YOU.

CUSTOMIZE YOUR HYDRAULIC SHEET METAL PRESS BRAKE



RETRACTABLE ARMS

This option is needed to support thin sheets of metal, when the bend is far from the edge. The retractable arms can be activated by the NC and pneumatically operated. They are equipped with a Teflon covering that protects the sheets. They can be assembled on all .SMART press brake models. Request information

sheet metal brakes retractable arms

BACKGAUGES

The dedicated automation allows us to equip our machines with innovative and advanced gauge systems such as backgauges BACK 3 – BACK 5. This solution makes our machineries unique and able to satisfy the most complex needs (BACK 8).

Advantages:
  • positioning precision;
  • high-speed movement of the axis;
  • high performances and versatility.
backgauges for hydraulic press brakes

ADDITIONAL ADDS-ON

metal brakes flattening table

FLATTENING TABLE

Pneumatic flattening table managed by CNC.

automatic clamping system for hydraulic press brake

AUTOMATIC CLAMPING SYSTEM

Pneumatic clamping system for the punches with quick frontal release.

semi-automatic clamping system for hydraulic press brake

SEMI-AUTOMATIC CLAMPING SYSTEM

Semi-automatic clamping system for the punches with quick frontal release and 180° rotation.

front support for press brakes

FRONT SUPPORTS

Front support on linear guides with adjustable height.

side parking for front support

SIDE PARKING FOR FRONT SUPPORTS

The linear guides extend beyond the table where the supports can be parked when not in use.

HYDRAULIC PRESS BRAKES RELATED ARTICLES

THE SATISFACTION OF THOSE WHO CHOSE VICLA®: MR. ...

These are input we look for continue whit determination on the progressive innovation way. Today we ...

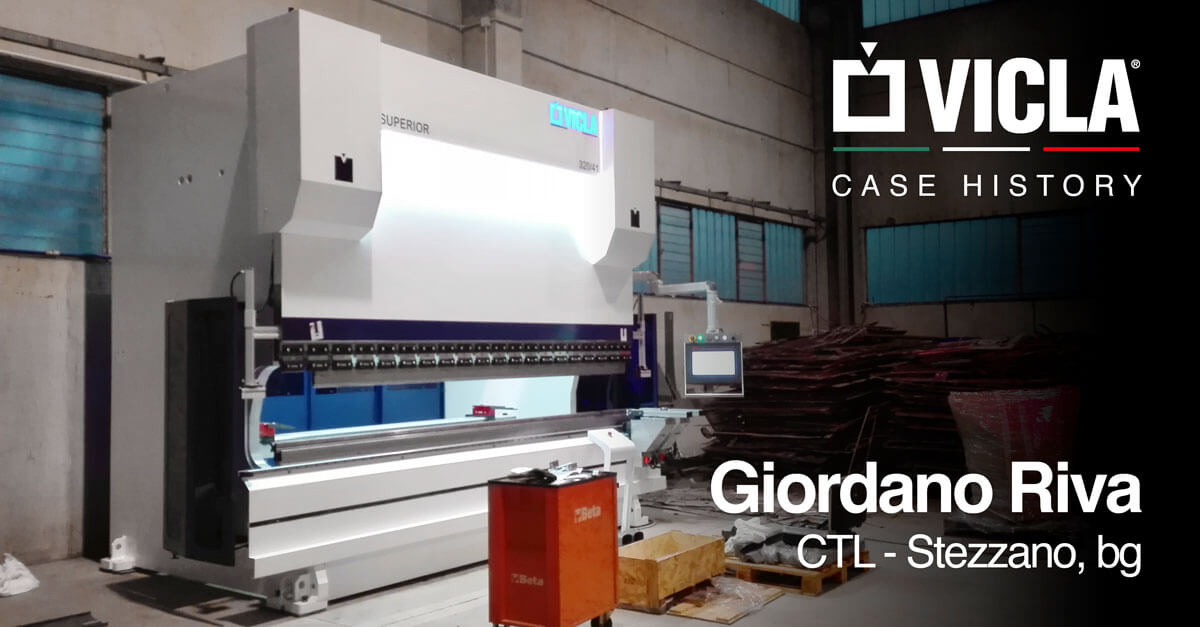

THE BOSS OF CTL S.R.L. , MR. GIORDANO RIVA AND ...
